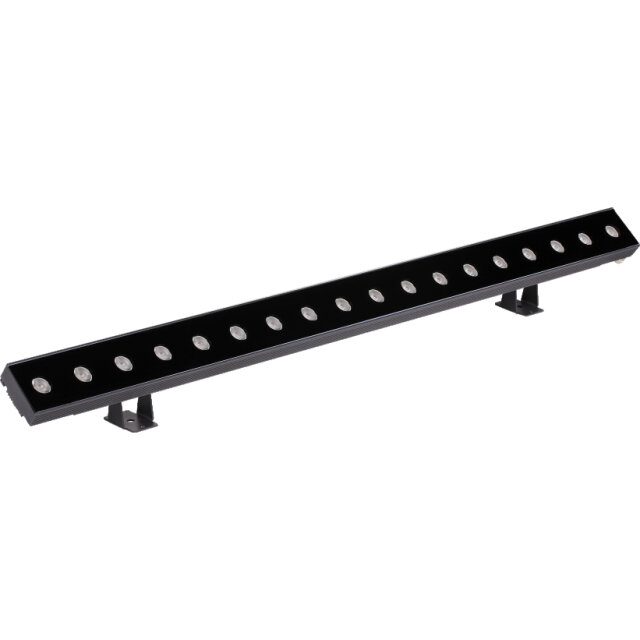

This is a AC AC /DC low voltage power supply of high brightness lamp.
Seamless connection of the lamp body design, lights and lights will not produce dark areas when connected.
Designed specifically for configuration and function, it provides ultra-bright luminous effects, ideal for dynamic accent lighting and media facade applications, as well as for a variety of other applications.
There are RGBW, adjustable color temperature, single white light these several standard color options.
| Type | Fixture type | IP | CCT(K) | LED Qty | Beam Angel(°) | Overall Size | Power Consumption(W) | Ambient temperature(°) | ||
|---|---|---|---|---|---|---|---|---|---|---|
|
L2881/s65-1000RGBW-24 | IP66 | RGBW | 24pcs | 10,30,15*30,15*45 | 1000x70x85.2mm | 72 | -30°C ~ +50°C | ||
|
L2881/s65-500RGBW-12 | IP66 | RGBW | 12pcs | 10,30,15*30,15*45 | 1000x70x85.2mm | 36 | -30°C ~ +50°C | ||
|
L2881/s65-300RGBW-8 | IP66 | RGBW | 8pcs | 10,30,15*30,15*45 | 1000x70x85.2mm | 24 | -30°C ~ +50°C | ||
|
|
L2881/s65-1000WT-24 | 高杆灯 | IP66 | WT | 24pcs | 10,30,15*30,15*45 | 1000x70x85.2mm | 72 | -30°C ~ +50°C | |
|
|
L2881/s65-500WT-12 | 高杆灯 | IP66 | WT | 12pcs | 10,30,15*30,15*45 | 500x70x85.2mm | 36 | -30°C ~ +50°C | |
|
|
L2881/s65-300WT-8 | 高杆灯 | IP66 | WT | 8pcs | 10,30,15*30,15*45 | 300x70x85.2mm | 24 | -30°C ~ +50°C | |
|
|
L2881/A02-1000W-36 | 高杆灯 | IP66 | W | 36pcs | 15,20,30,45,60,20*40,10*60 | 1000x70x85.2mm | 36 | -30°C ~ +50°C | |
|
|
L2881/A02-500W-18 | 高杆灯 | IP66 | W | 18pcs | 15,20,30,45,60,20*40,10*60 | 500x70x85.2mm | 18 | -30°C ~ +50°C | |
|
|
L2881/A02-300W-8 | 高杆灯 | IP66 | W | 8pcs | 15,20,30,45,60,20*40,10*60 | 300x70x85.2mm | 18 | -30°C ~ +50°C |
